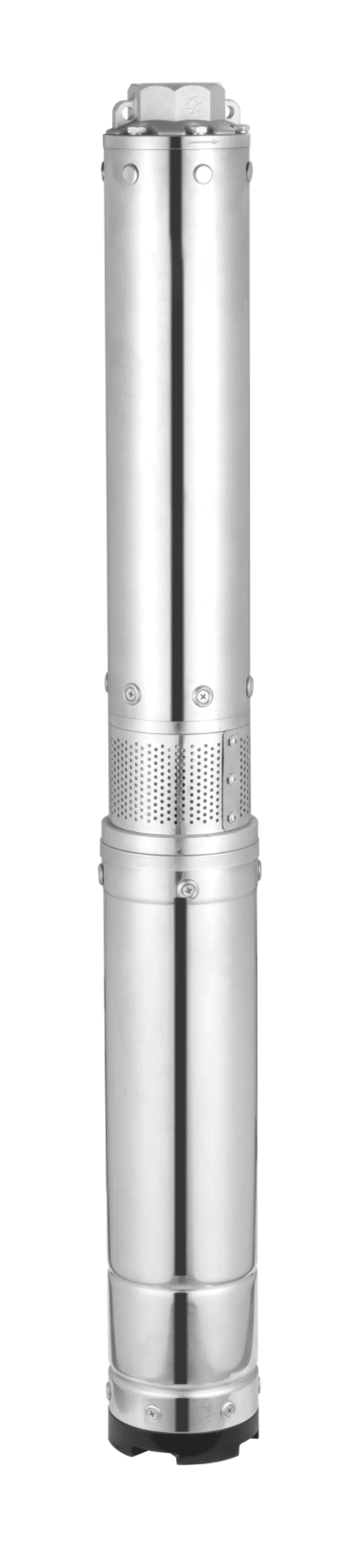

Multistage Submersible Pump for Well (Stainless Steel Luxury Type)

130 model

Application Fields
fountain landscape
water tower water
farmland irrigation
COMPONENTS
Internal and external dual mechanical seal design.
Precision casting 304 stainless stel outlet &joint.
Integrallystretched volute design
High precision stainles stel coupling, ceramic bushing.
WORKING CONDITIONS

1. Conveying medium temperature should be below 40℃.

2. Conveying medium PH value should be 6.5-8.5.

3. The volume ratio of particle in the conveying medium should be below 0.1%, The maximum particle in the conveying medium is 0.2MM.

4. Power frequency:50Hz, Voltage:AC220V/380V.

5. Taking the center of the impeller as the reference, pump should not work deeper than 5 meters.

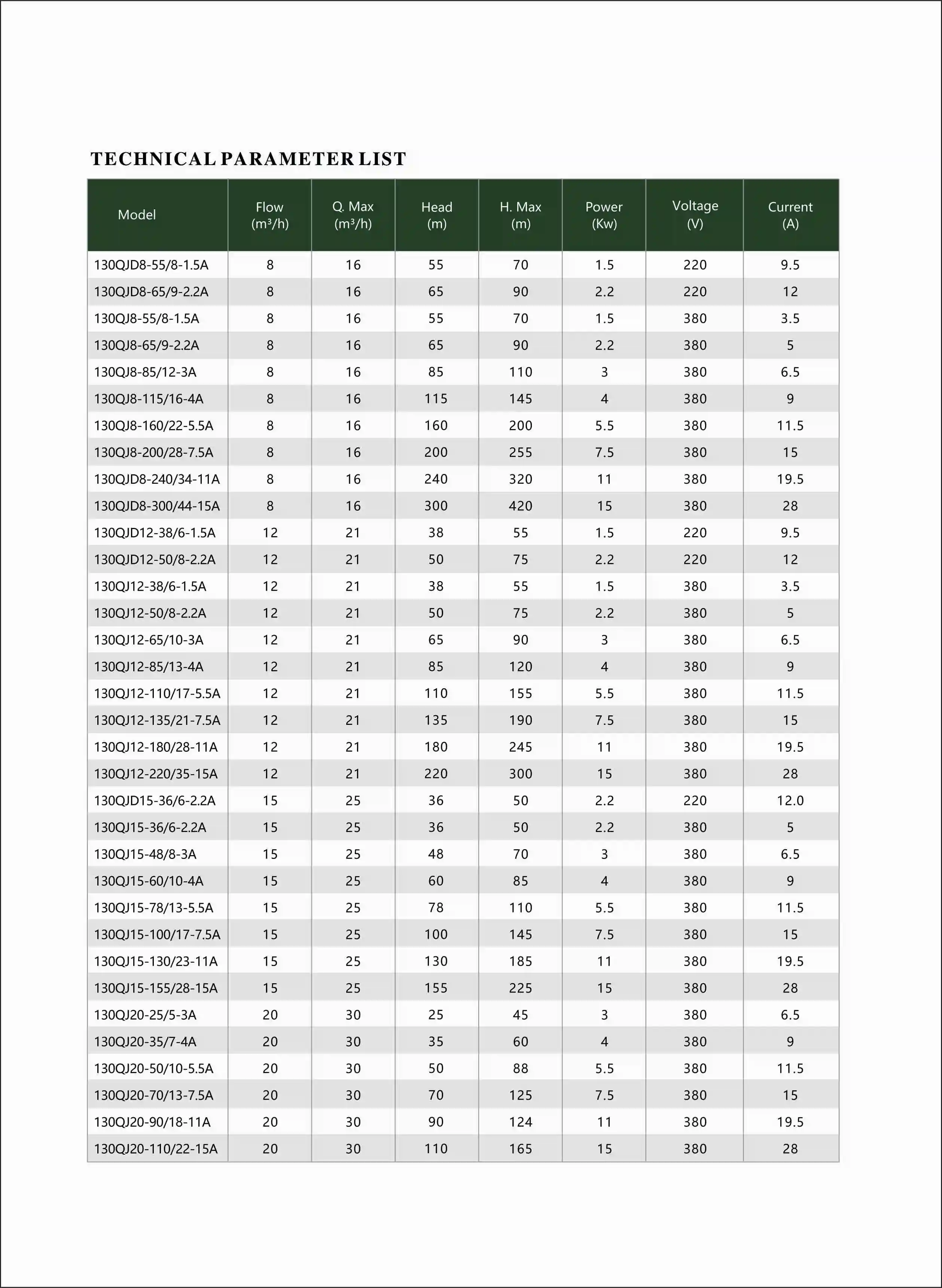

TECHNICAL PARAMETER LIST
