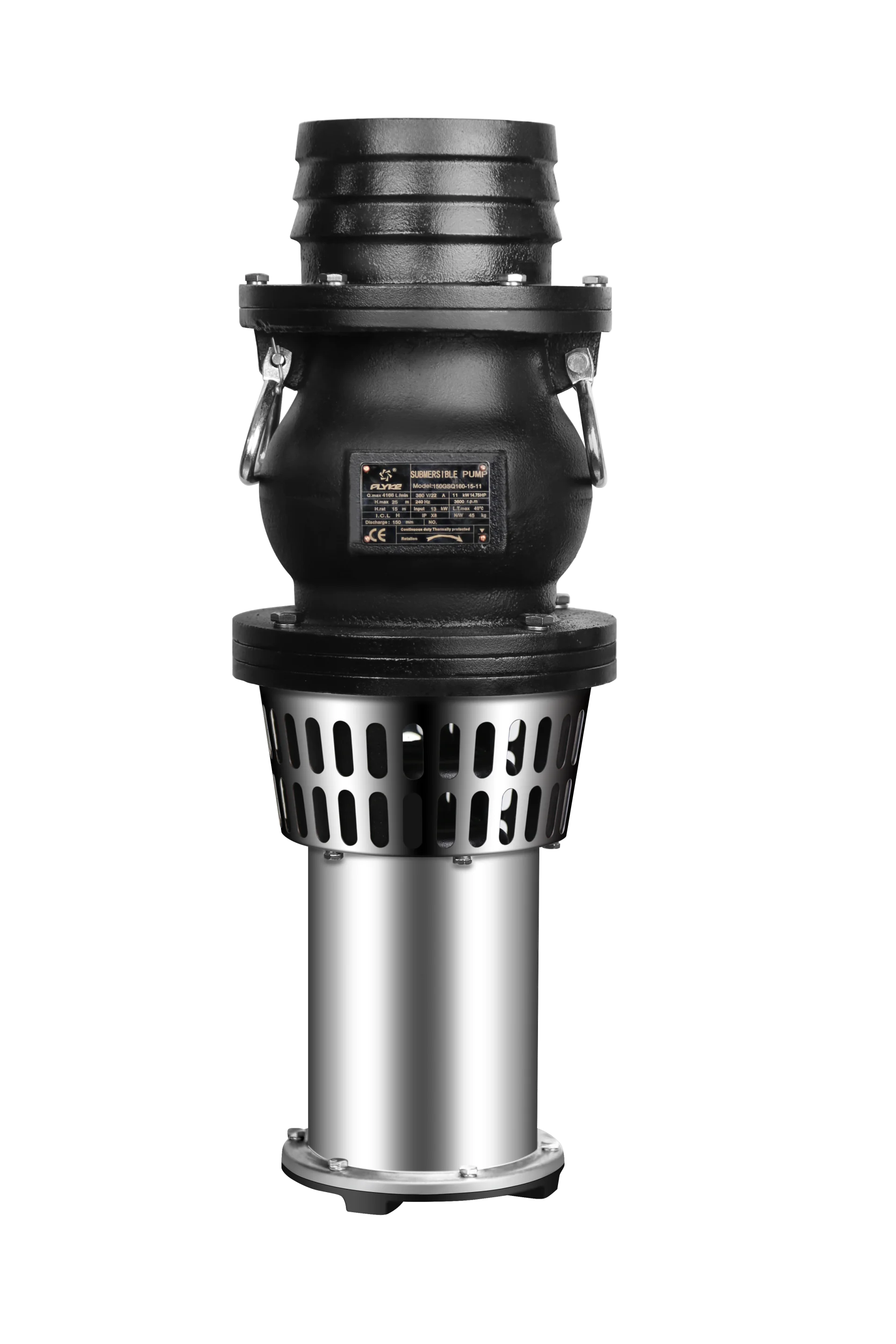

High-speed permanent magnet ubmersible pump

GSQ

Application Fields
mountain water supply
river pumping
farmland irrigation
COMPONENTS
Dedicated oil seal for high-speed water pumps, Speed resistance:8000r/min.
High-Speed PM Rotor-Eficient &Energy-Saving.
High speed frequency conversion control
Stainless Steel Impeller Durable &Efficient.
WORKING CONDITIONS

1. Conveying medium temperature should be below 40℃.

2. Conveying medium PH value should be 6.5-8.5.

3. The volume ratio of particle in the conveying medium should be below 0.1%, The maximum particle in the conveying medium is 0.2MM.

4. Power frequency:50Hz, Voltage:AC220V/380V.

5. Taking the center of the impeller as the reference, pump should not work deeper than 5 meters.

6. Real working head should be no less than 60% of rated head.

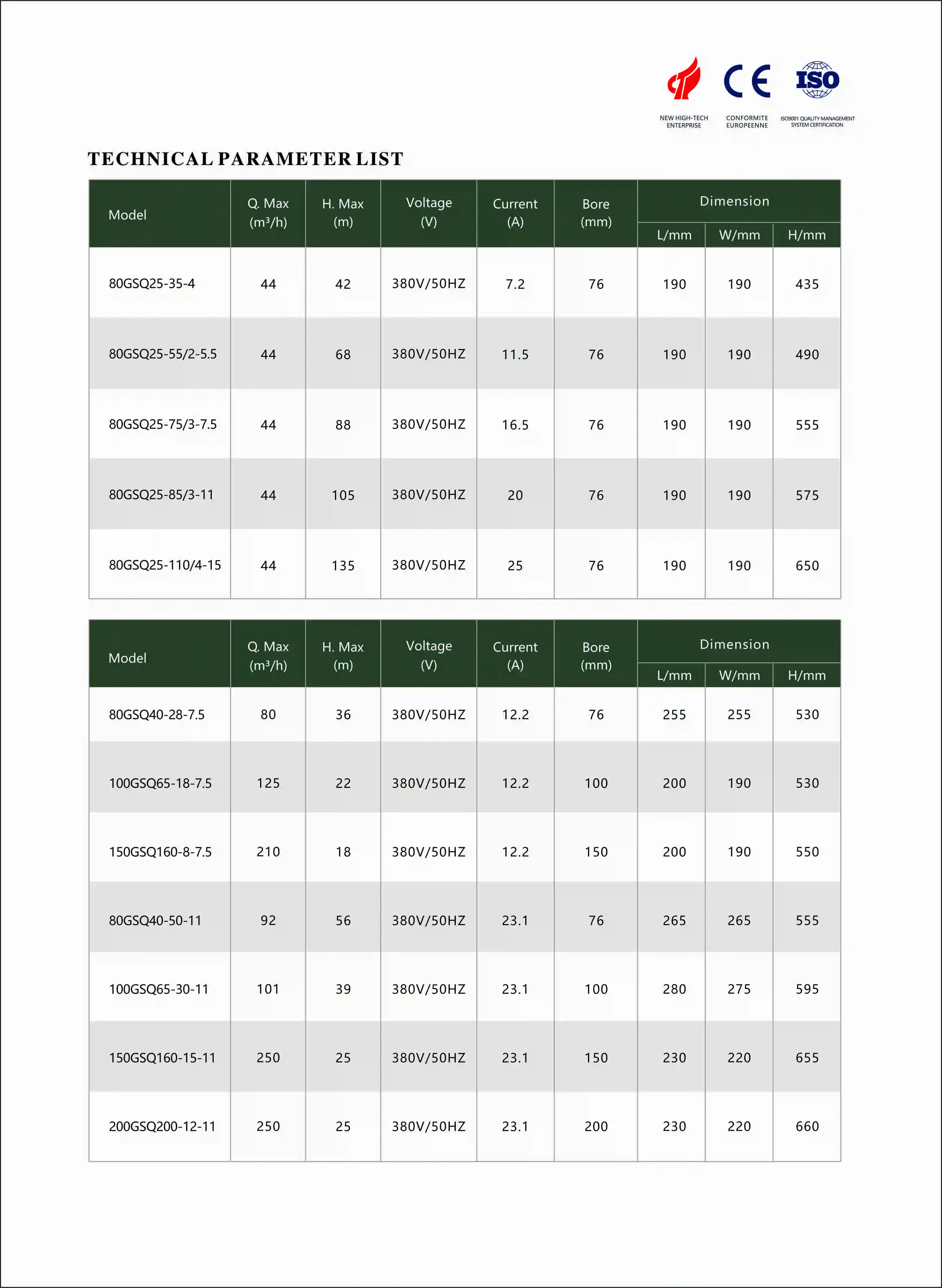

TECHNICAL PARAMETER LIST
