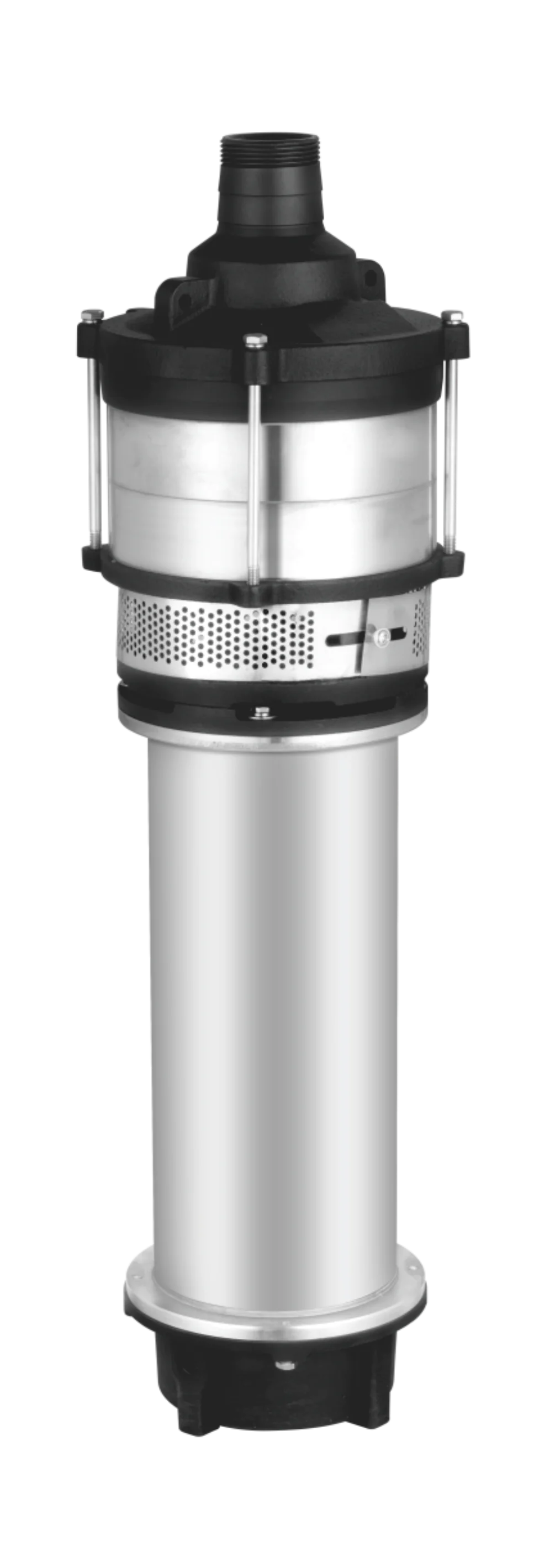

Stainless Steel Multistage Submersible Pump

QD

Application Fields
fish pond breeding
farmland irrigation
construction
COMPONENTS
Stainless Steel Flow Guide Casing, Durable &Sleek.

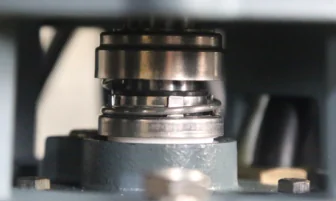

External sand-proof mechanical seal, wearproof and durable

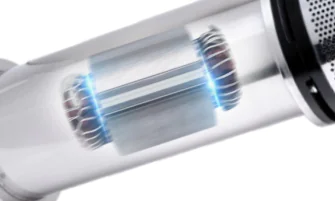

100%copper wire stator winding, hard to burn and durable
PPO guide vane, wearproof and durable PPO impeller,long service life
WORKING CONDITIONS

1. Conveying medium temperature should be below 40℃.

2. Conveying medium PH value should be 6.5-8.5.

3. The volume ratio of particle in the conveying medium should be below 0.1%, The maximum particle in the conveying medium is 0.2MM.

4. Power frequency:50Hz, Voltage:AC220V/380V.

5. Taking the center of the impeller as the reference, pump should not work deeper than 5 meters.

6. Real working head should be no less than 60% of rated head.

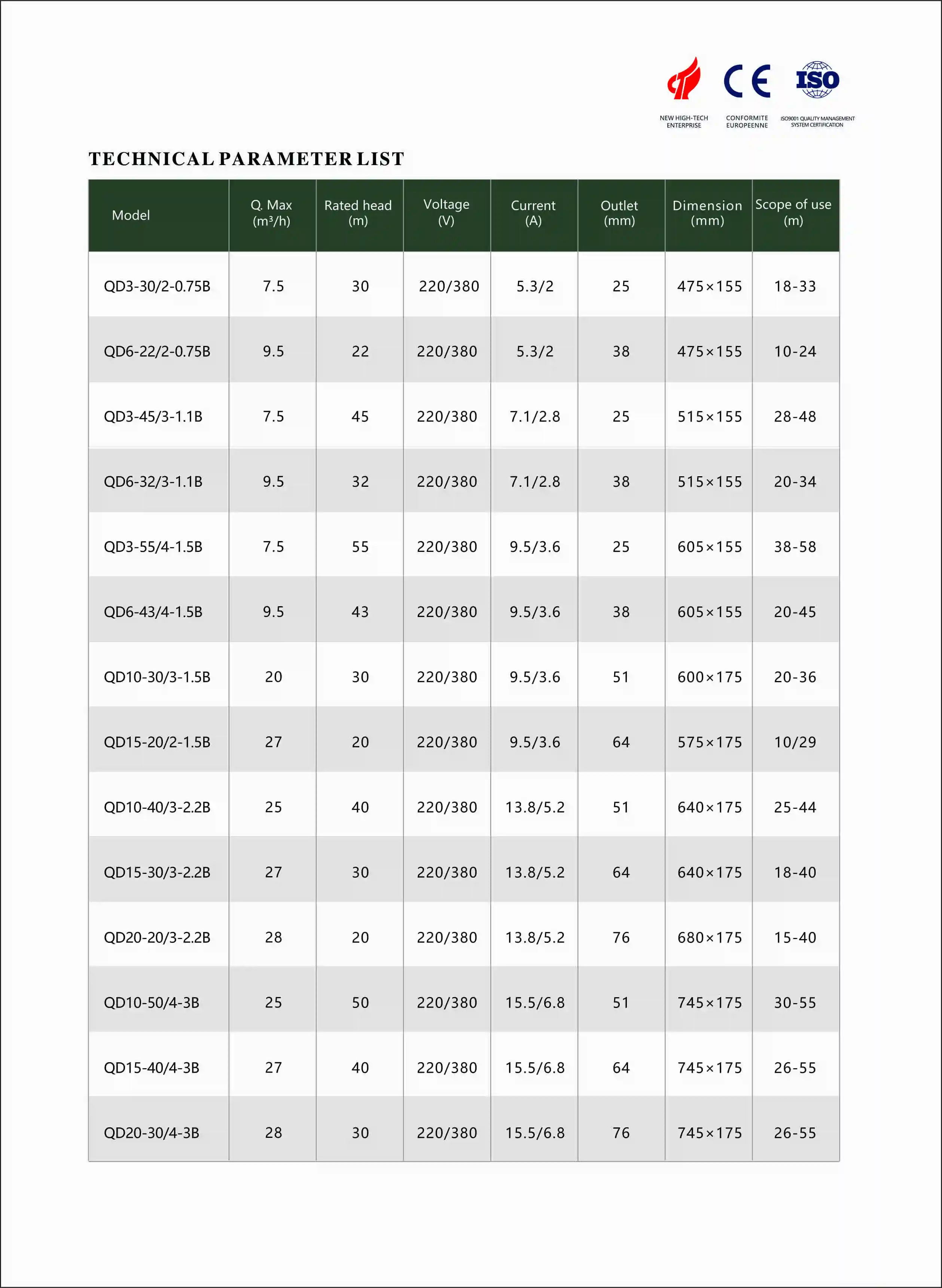

TECHNICAL PARAMETER LIST
