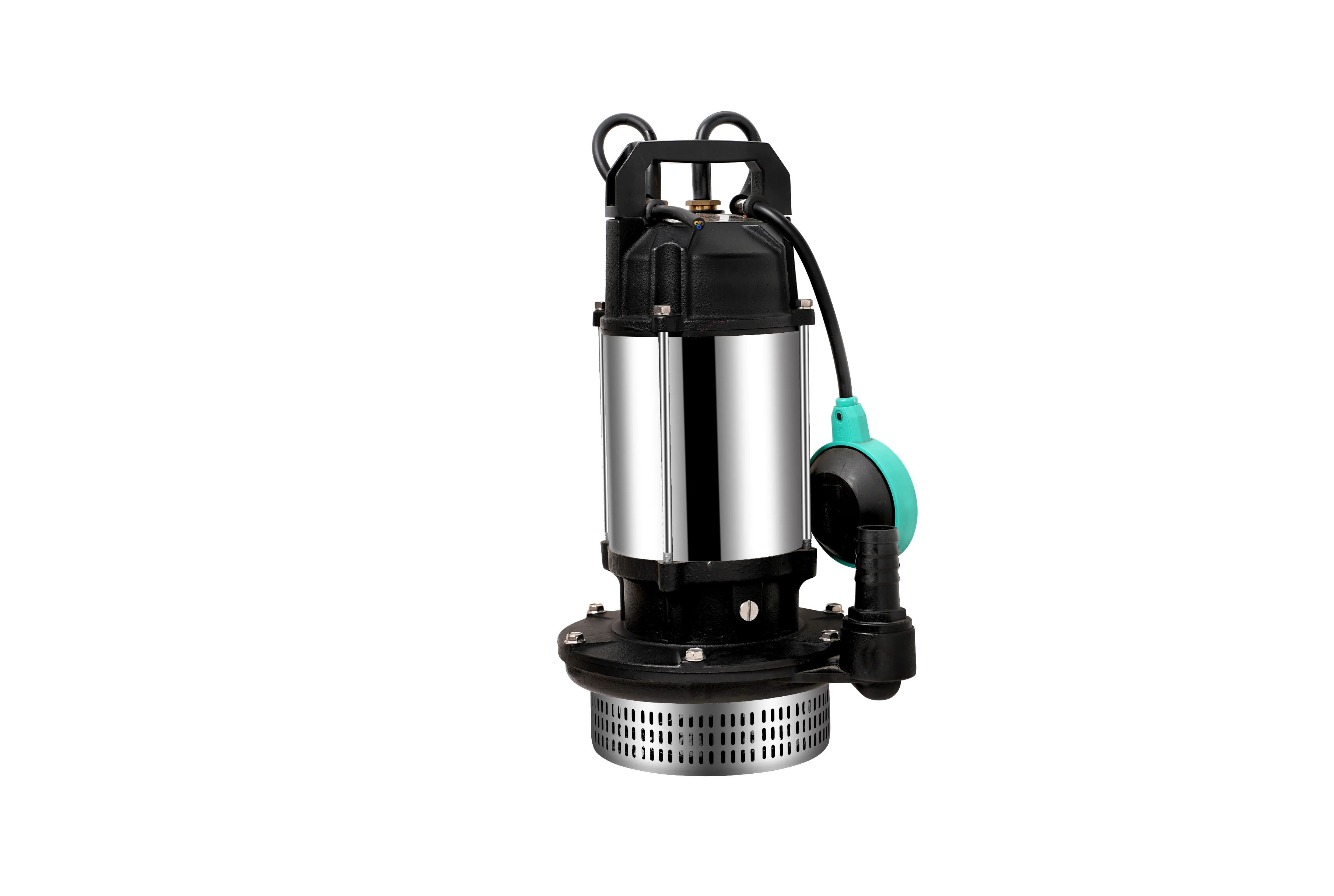

Small Electric Submersible Pump

QDX-B

Application Fields
fish pond breeding
farmland irrigation
construction
COMPONENTS
Waterproof cable design to prevent water from entering the motor

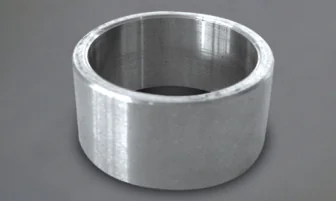

SS304 sleeve, prevent mechanical seal from wearing

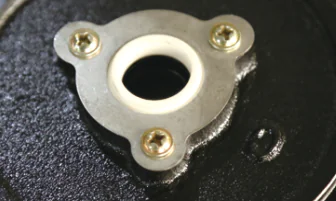

Static ring with plateresist pressure impact
Built-in thermal protector to prevent motor from burning
WORKING CONDITIONS

1. Conveying medium temperature should be below 40℃.

2. Conveying medium PH value should be 6.5-8.5.

3. The volume ratio of particle in the conveying medium should be below 0.1%, The maximum particle in the conveying medium is 0.2MM.

4. Power frequency:50Hz, Voltage:AC220V/380V.

5. Taking the center of the impeller as the reference, pump should not work deeper than 5 meters.

6. Real working head should be no less than 60% of rated head.

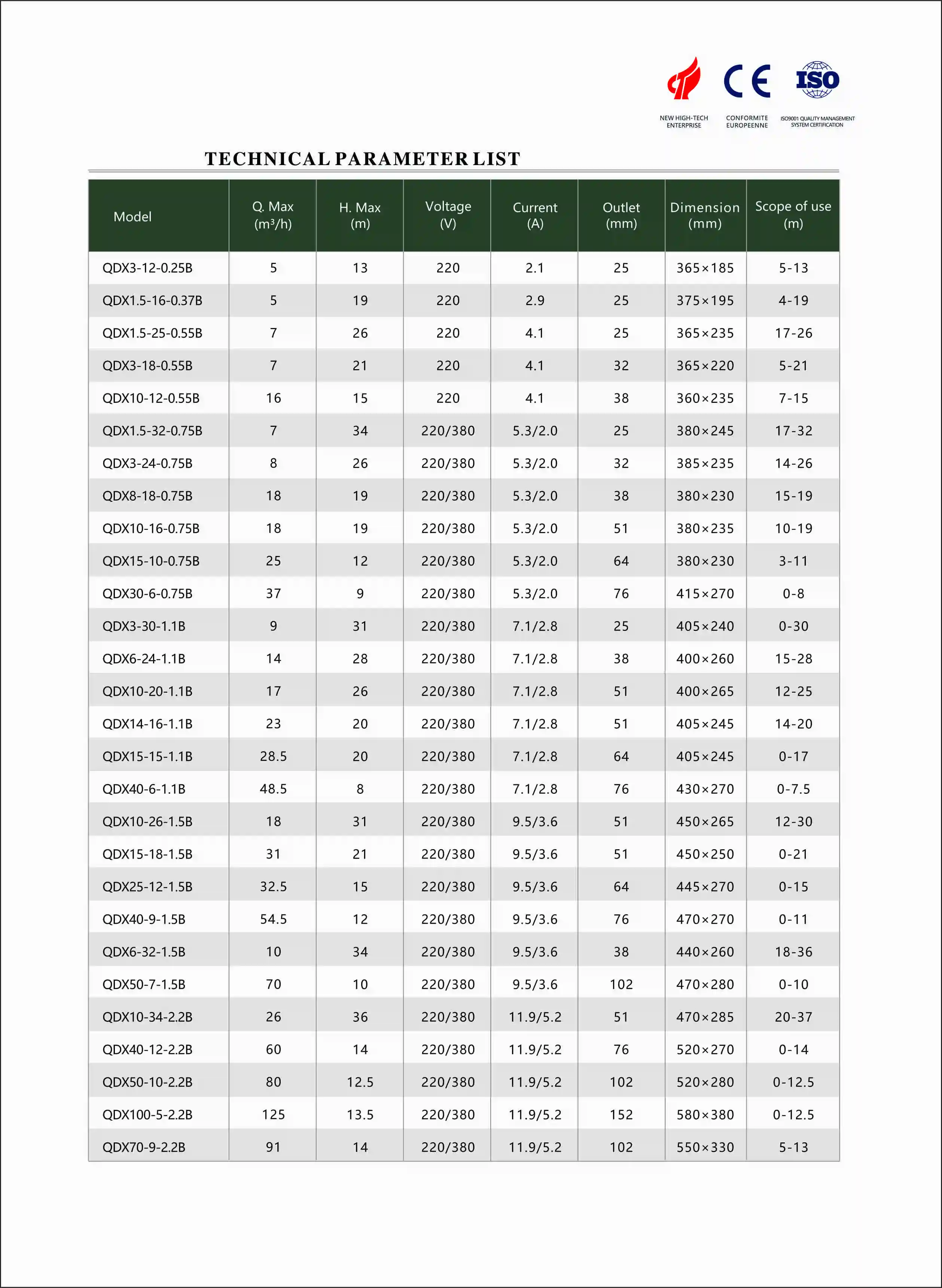

TECHNICAL PARAMETER LIST
