Stainless Steel SubmersibleSewage Pump With Cutter

WQ(D)-BG

Application Fields
fam drainage
kilnwastewater
septic tank drainage
COMPONENTS

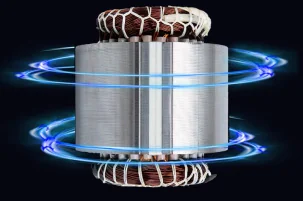

100%copper wire stator winding, hard to burn and durable

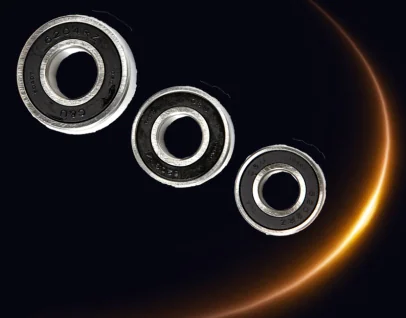

C&U bearings, Long service life and smooth operation

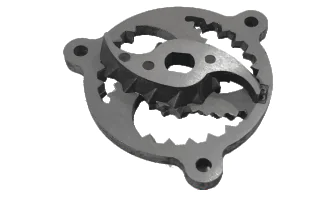

Alloy blade,hard to rust, tough and wearproof
WORKING CONDITIONS

1. Taking the center of the impeller as the reference, pump should not work deeper than 5 meters.

2. Conveying medium temperature should be below 40℃.

3. Conveying medium PH value should be 0-12.

4. The volume ratio of particle in the conveying medium should be below 2%.

5. The maximum particle in the conveying medium is 5MM.

6. The maximum density of the conveying medium is 1.2×10³KG/m³.

7. Power frequency:50Hz, Voltage:AC220V/380V, Voltage Fluctuation range is 0.9-1.1 times of the rated voltage.

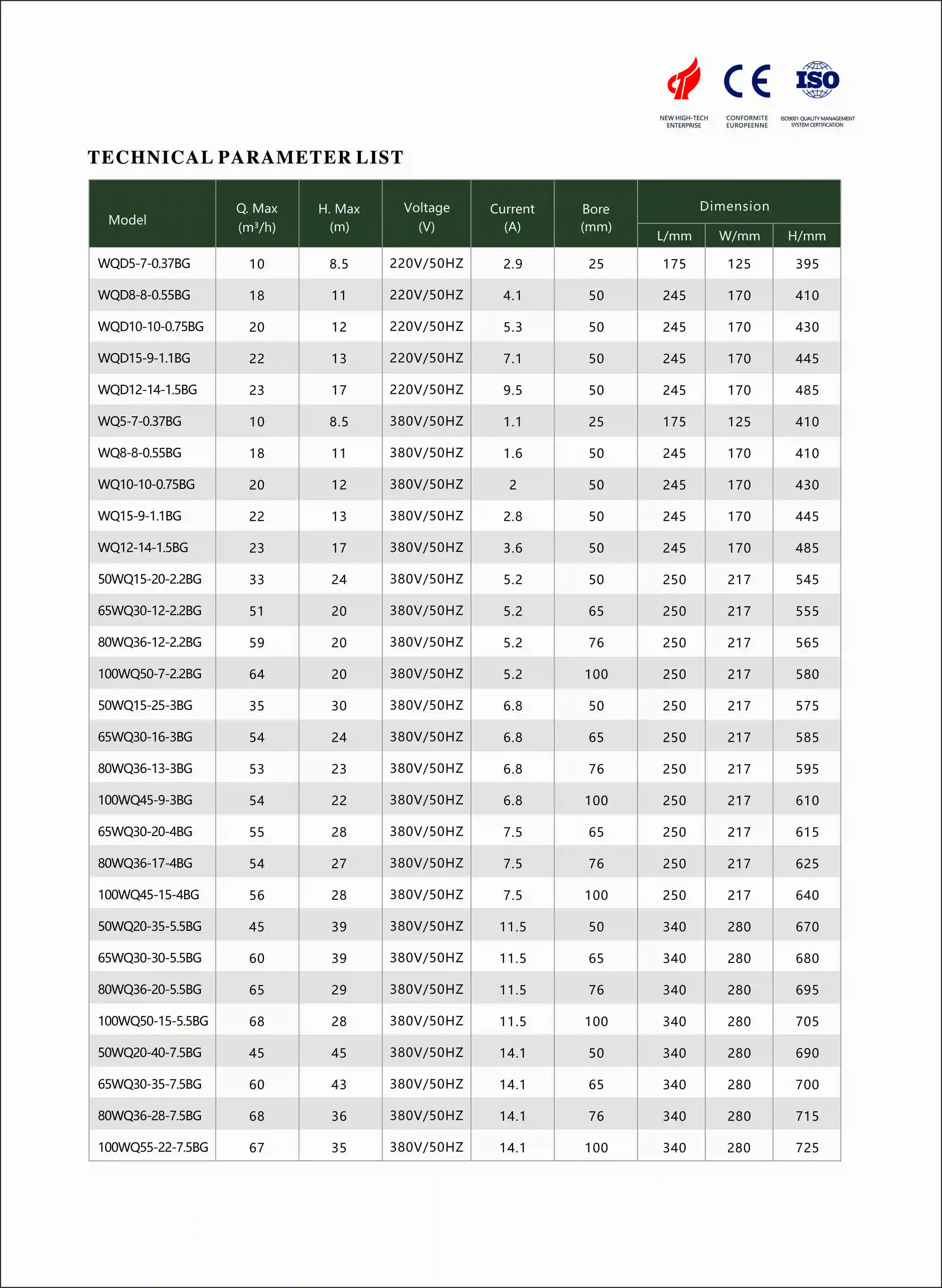

TECHNICAL PARAMETER LIST
