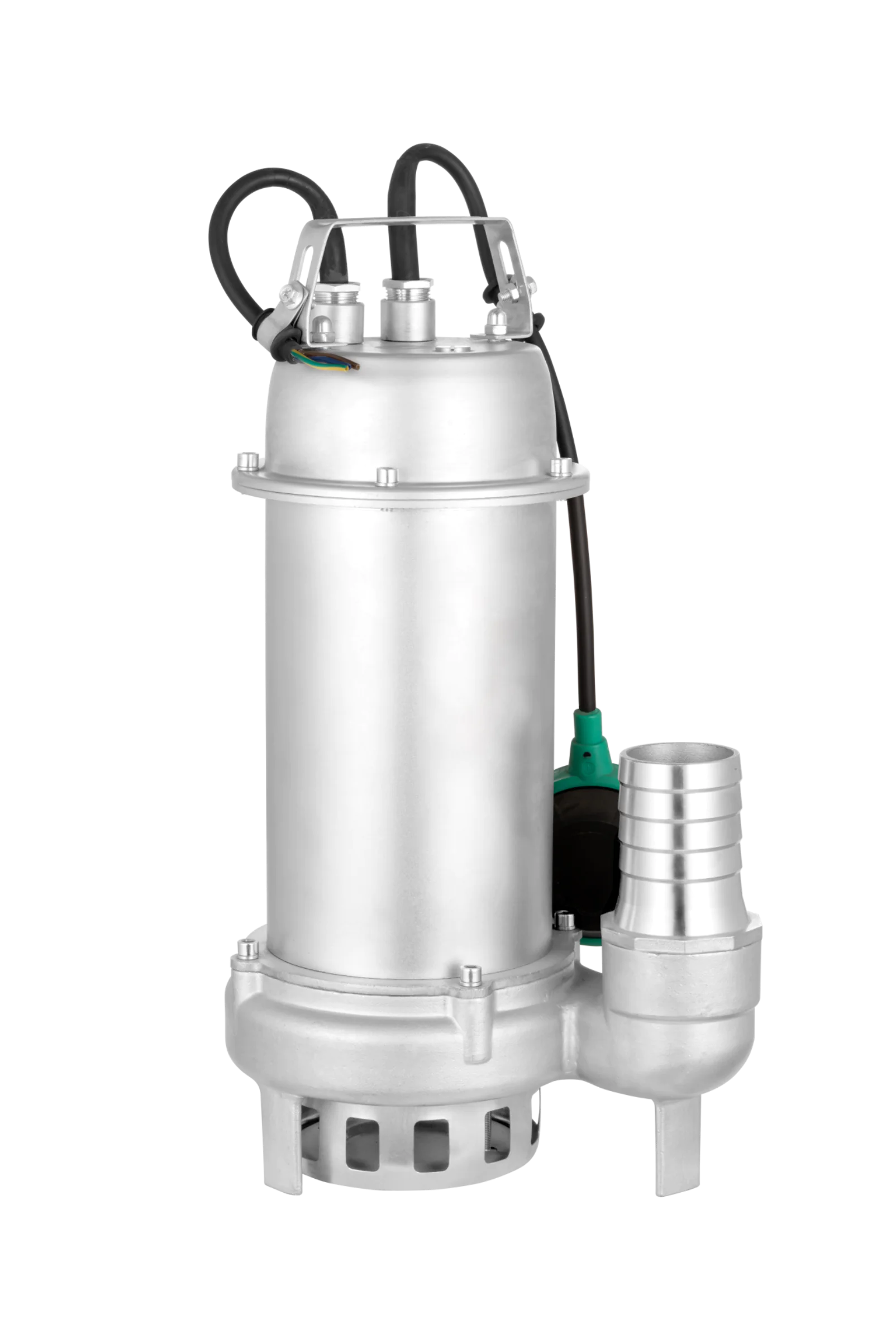

Stainless Steel Submersible Sewage Pump

WQD-S

Application Fields
food machinery
chemical machinery
medical machinery
COMPONENTS
304/316 Stainless steel open impeller particles pass through easily.

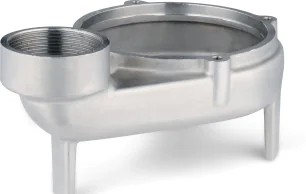

304/316 Stainless steel pump body anti-corrosive and durable
Thickened 304/316 stainless stee motor care, strong and anti-corrosive.
Fluororubber O-rinz resistant to aoids, alkalis and heat.
WORKING CONDITIONS

1. Conveying medium temperature should be below 40℃.

2. Conveying medium PH value should be 4-10.

3. The maximum density of the conveying medium is 1.2×10³KG/m³.

4. Power frequency:50Hz, Voltage:AC220V/380V, Voltage Fluctuation range is 0.9-1.1 times of the rated voltage.

5. Taking the center of the impeller as the reference, pump should not work deeper than 5 meters.

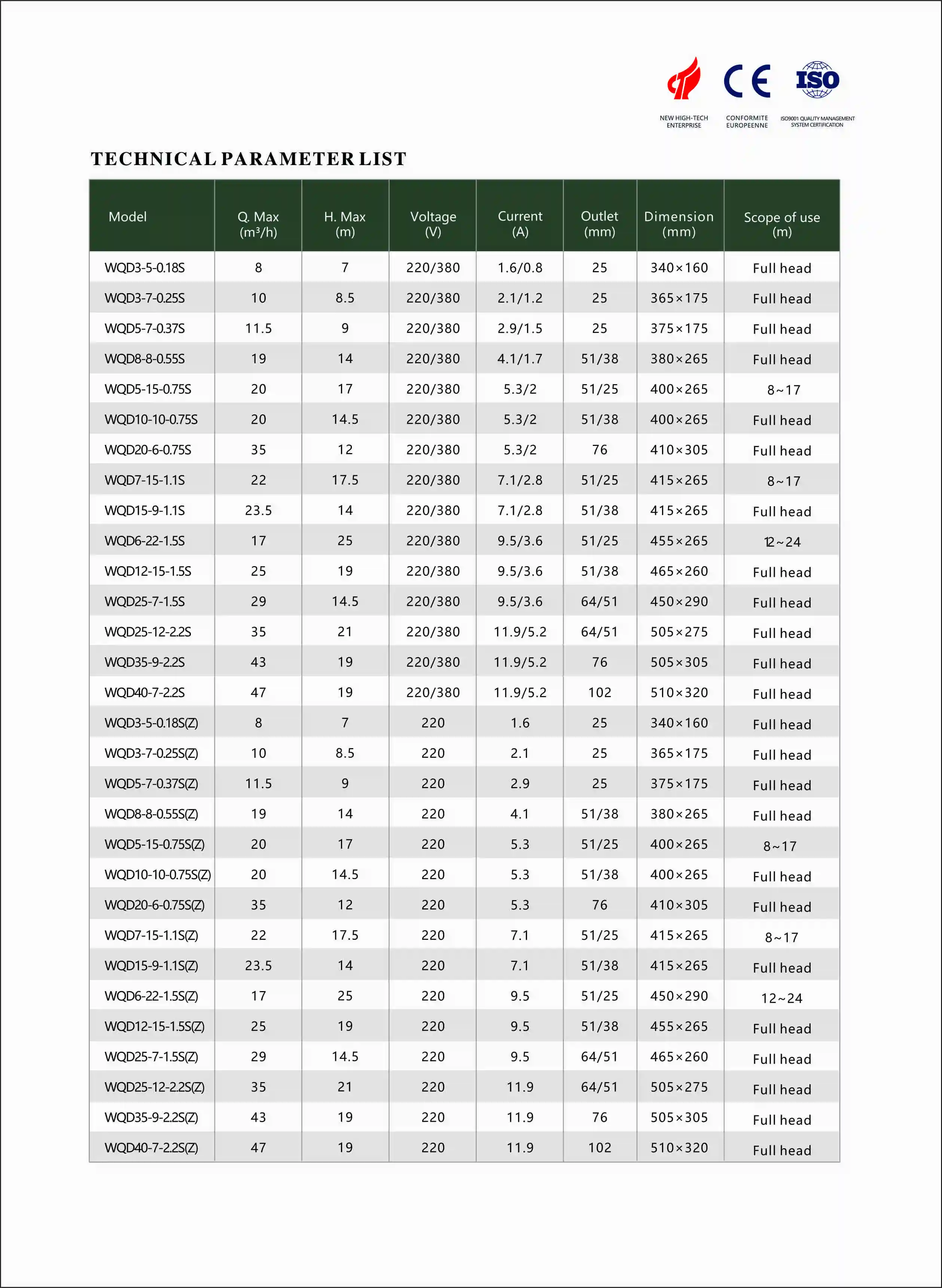

TECHNICAL PARAMETER LIST
