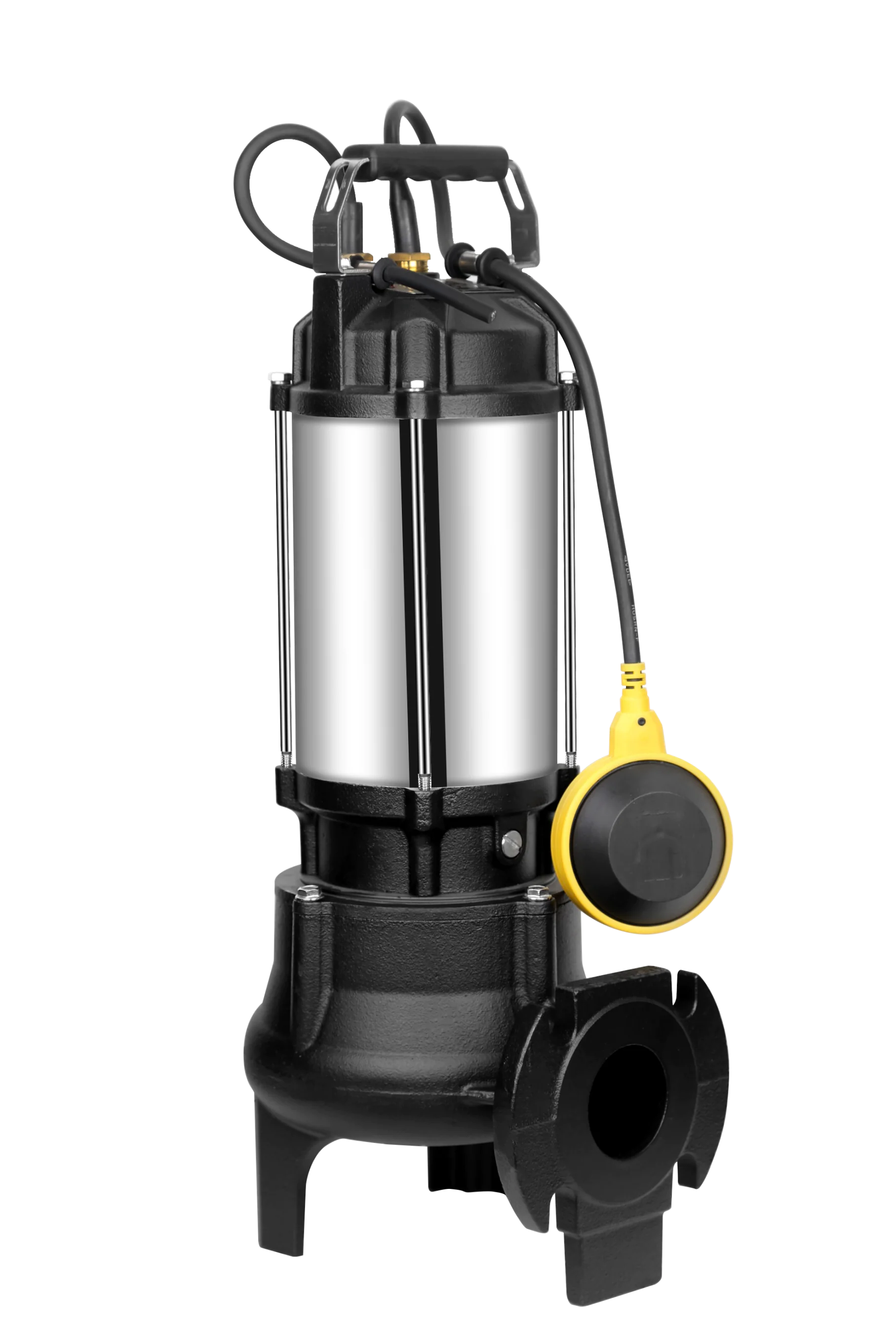

Vortex-flow Submersible Sewage Pump with High-capacity Flow Path

WQX(D)

Application Fields
farm drainage
kiln wastewater
septic tank drainage
COMPONENTS

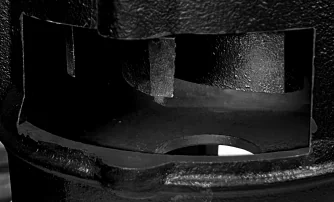

High-flow channel design prevents clogging and optimizes system performance.

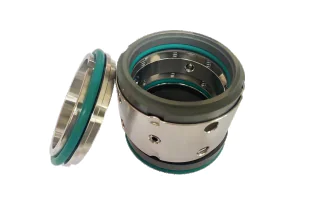

Dual internal and external mechanical seal design
Semi-open impeller

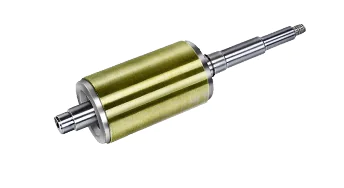

Stainless steel rotor shaft, wearproof and durable
WORKING CONDITIONS

1. Taking the center of the impeller as the reference, pump should not work deeper than 5 meters.

2. Conveying medium temperature should be below 40℃.

3. Conveying medium PH value should be 0-12.

4. The volume ratio of particle in the conveying medium should be below 2%.

5. The maximum particle in the conveying medium is 5MM.

6. The maximum density of the conveying medium is 1.2×10³KG/m³.

7. Power frequency:50Hz, Voltage:AC220V/380V, Voltage Fluctuation range is 0.9-1.1 times of the rated voltage.

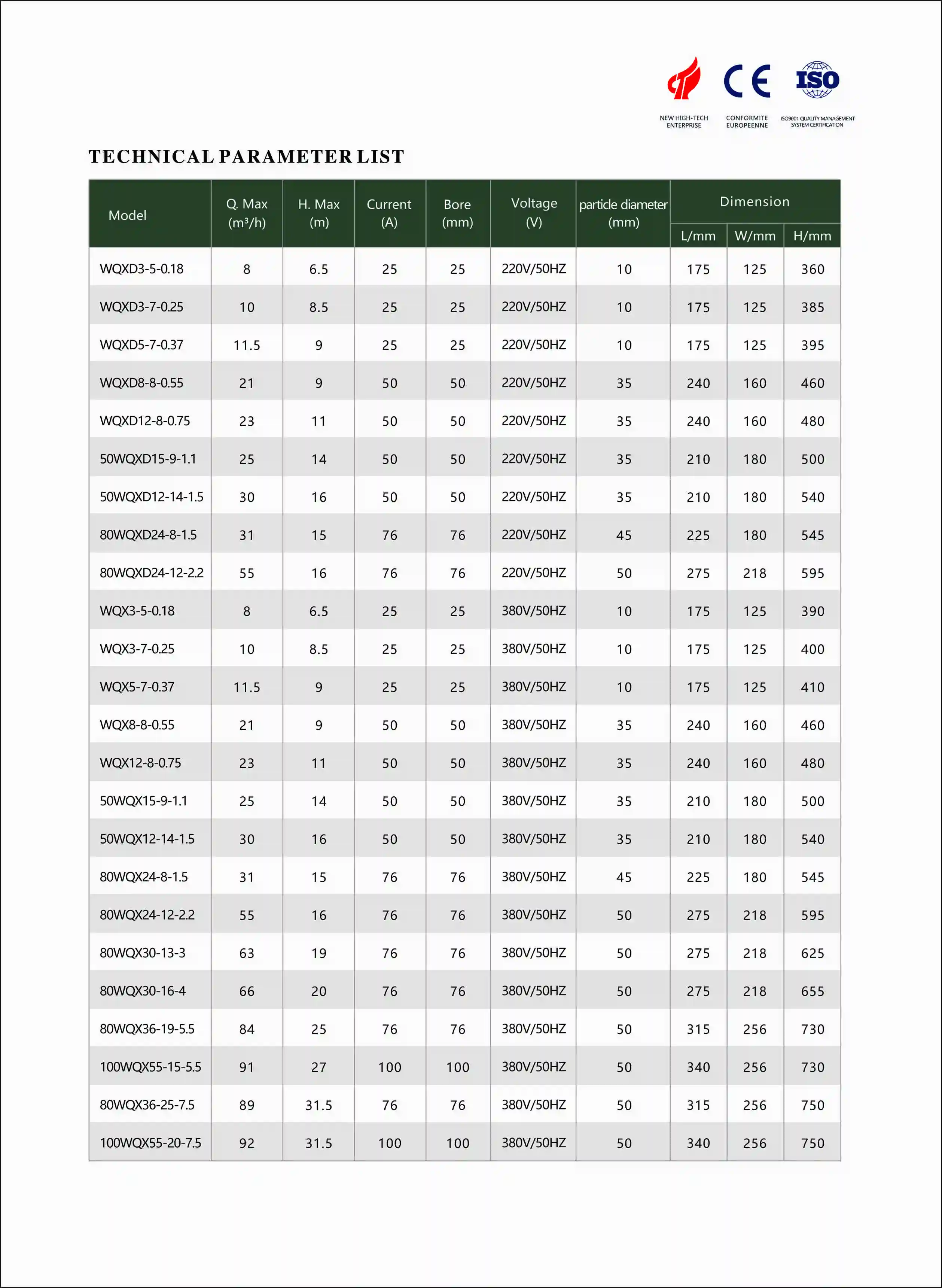

TECHNICAL PARAMETER LIST
